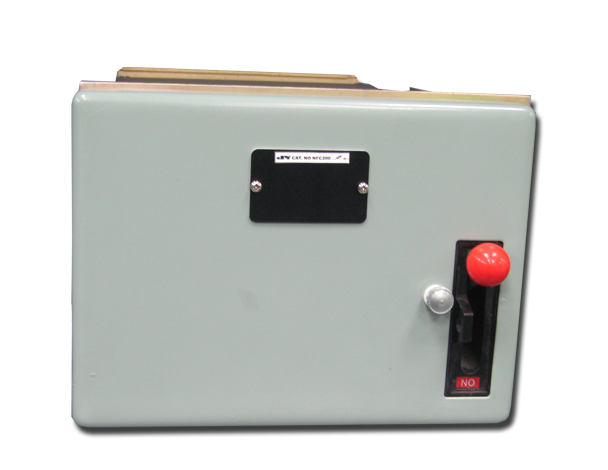

NFC 200

SD1/M10/051
  • DPI NFC Fuse Combination Units and Super Staks are designed to simplify switchboard construction, permit maximum design flexibility and provide a functional modern switchboard concept.
  • NFC Fuse Combination Units, Termination Kits and Super Stak significantly reduces the time, labour and therefore the cost associated with specifying and constructing modern day switchboards.
  • It is possible to spread out your purchase costs by installing Super Staks first, prior to ordering NFC Fuse Combination Units.
  • Designed and engineered in Australia, DPI NFC Units and NFC Super Stak Tier Systems are the best choice.

Technical Specifications

Rated Thermal Current

100A

Rated Duty - 8 Hour

100A

Rated Duty - Uninterrupted

100A

Rated Operational Voltage (AC23B)

415VAC

Rated Insulation Voltage

690V

Rated Operational Current (AC23B)

100A

Neutral link

N/A

Frame size

1

BSEN60947-3:1992, IEC947-3:1990

Complies

AS1136 Appendix 'E' Special test (unlimited) and AS3439:1993 Appendix 'EE'

NFC100E

Uninterrupted Duty: (Link Fitted)

320A

Rated making capacity (AC)

2000A

Rated breaking current (AC)

1600A

Rated breaking current (DC)

800A

Rated short time withstand

6.4kA

Current (fitted with copper links)

for 1 sec

AS1136-Form 3 Segregation
AS3439-Form 4 Segregation

Complies

Tested for Arc Fault

Complies

Bus thermal rating

1250A

Rated short time withstand current

63kA for 1 sec
