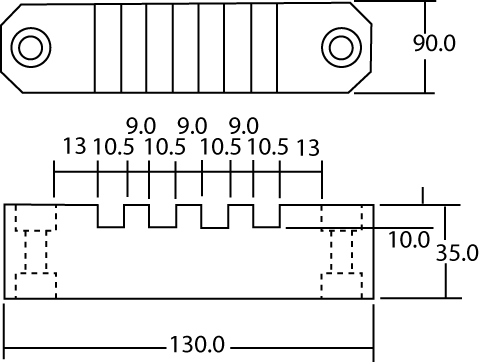

BSD1/410BG

BSD1/410BG BSD1/410BG
  • Type tested to IEC 60439-1 in Australia
  • Made of halogen free fiberglass composite materials
  • Self-extinguishing and heat resistant (ISO 75/A>200°C)
  • High thermal, mechanical & electrical strength

Specifications

Material

DMC

Phases

1

Busbar Side 1 (mm)

10mm x 4

Busbar Side 2 (mm)

-

Rated Voltage (V)

660

Max Bolt Size

M8

Recommended Torque (Nm)

16

Material Specification

Material

Fiberglass reinforced, unsaturated polyester

Discharge

Halogen free

Environment Protection

Recyclable

Color

Beige

Working Temperature

160°C

Temperature of Deflection

>200°C

Deflection Under Load @ 100°C

1.2mm

Flammability

UL94 Class VO & 5VA

Moisture Absorption

Tropicalised (<12mg-BS2782)

Charpy Impact Strength @ 90°C

26kJ/sq.m

Flexural Strength

90MPa

Flexural Modulus

11.5GPa

Tensile Strength

30MPa

Electrical Strength @ 90°C

11.0 MV / m (IEC243)

ARC Resistance (ASTM D495-73)

195s

Insulation Resistance

12.3 log Ohms (IEC167)

Tracking Resistance (DIN 53480)

Grade KA3C (Method A)
>B600 (Method B)
>600V (BS5901/IEC112)

Loss Tangent @ 1 MHz

tan 0.013
